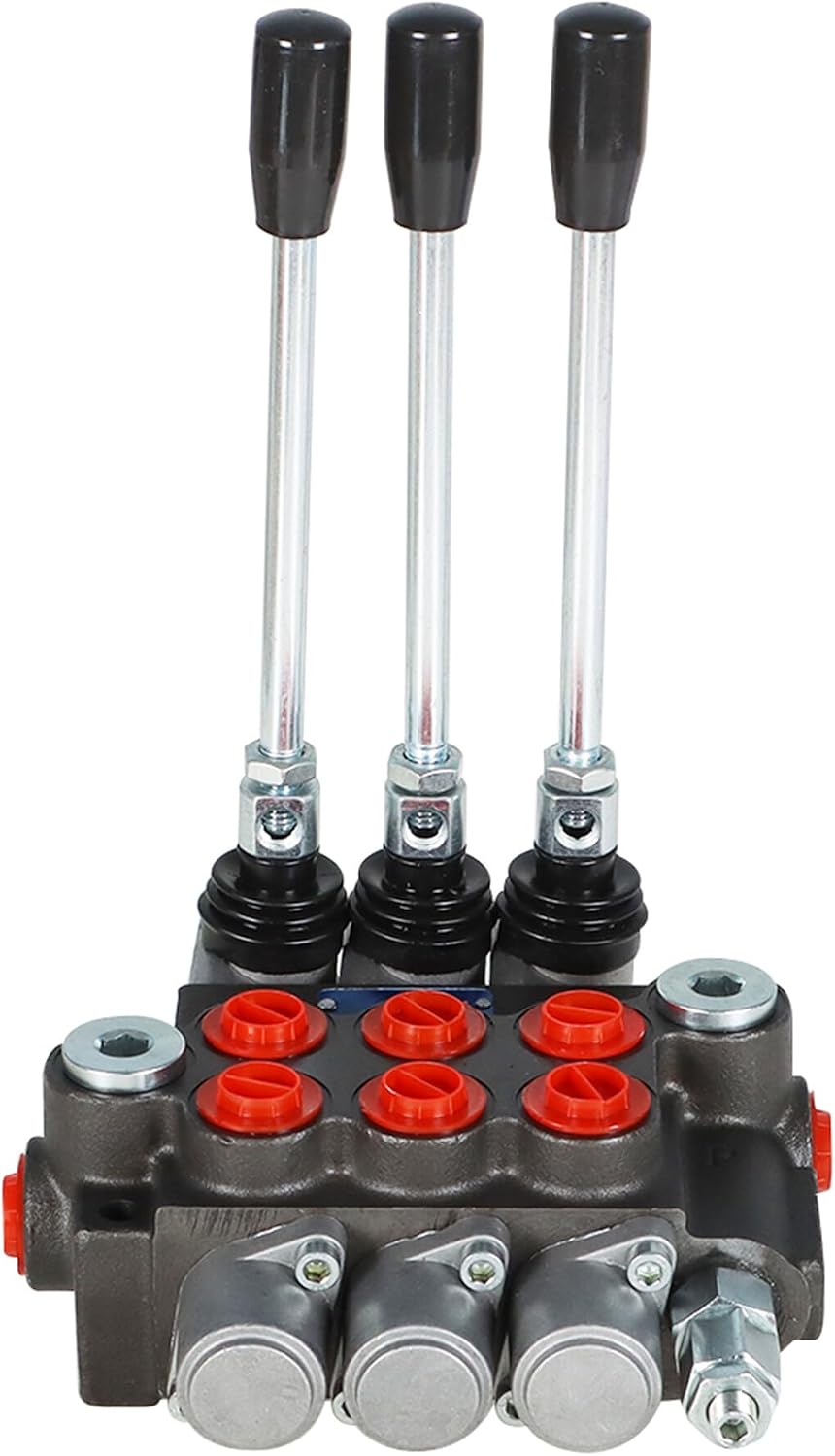

kimllier Hydraulic Directional Control Valve 3 Spool 13GPM 3600PSI BSPP Ports, Adjustable Double Acting Hydraulic Valve Fit for Small Tractors Loaders
Product details
| Management number | 222647718 | Release Date | 2026/05/04 | List Price | US$24.78 | Model Number | 222647718 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Hydraulic Directional Control Valve 3 Spool 13GPM 3600PSI BSPP Ports Double Acting Hydraulic ValveSpecification:T = 150PSIA , B = 4300PSIA, B Ports: 1/2"P, T, N Port: 1/2"Center System: OpenRelief Valve: AdjustableBack Pressure: ≤1MPATemperature: -20 - 80℃Vise Rang: 10 - 400mm2/sFiltrating Accuracy: ≤10umNominal Flow: 13GPM (60L/min)Max Operating Pressure: P = 3600PSIFeatures:Accuracy ground and hard chrome-plated spools assure a long lifeDouble acting hydraulic valve fit for small tractors tractors loadersDouble acting hydraulic valve made of cast iron construction it have higher strength and durabilityPackage Includes:1 x 3 Spool 13GPM 3600PSI BSPP Ports Hydraulic Directional Control Valve
- Size: Double acting hydraulic valve 3 spool, 13GPM, 3600PSI BSPP ports, 1/2 A, B ports, 1/2 P, T, N port
- Material: Hydraulic directional control valve made of cast iron construction it have higher strength and durability
- Design: All spools are standard double acting with spring return to neutral position which are ideal for double acting cylinders
- Product Use: Double acting hydraulic valve fit for small tractors tractors loaders
- Feature: 3600PSI with adjustable relief lever handle the maximum flow is up to 13GPM
| Size | 18.5 x 23 x 10 cm |
|---|---|
| Brand Name | kimllier |
| Unit Count | 1.0 Count |
| Valve Type | spool valve |
| Item Weight | 6300 Grams |
| Thread Size | 12.7mm |
| Thread Type | Parallel |
| Manufacturer | kimllier |
| Model Number | Does not apply |
| Material Type | Cast Iron |
| Exterior Finish | Chrome |
| Item Dimensions | 9.06 x 7.28 x 3.94 inches |
| Number of Ports | 3 |
| Maximum Pressure | 3600 Pound per Square Inch |
| Specification Met | ASME B16.34 |
| Inlet Connection Type | BSPP |
| Outlet Connection Size | 0.5 Inches |
| Outlet Connection Type | BSPP |
| Manufacturer Part Number | KM-1921734-669530-LR |
